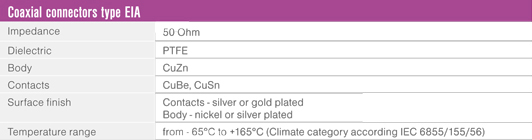

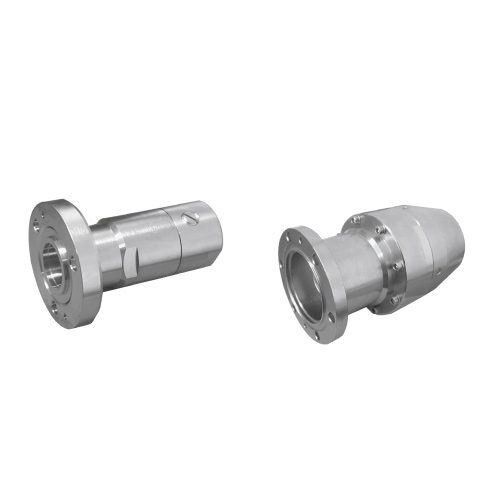

Coaxial connectors type EIA
These quality connectors and additional supporting elements are the result of decades of experience. The whole range is designed to withstand severe environmental conditions. Precise manufacturing enables solid connections and low intermodulation (IMD) products.
Back to products
These quality connectors and additional supporting elements are the result of decades of experience. The whole range is designed to withstand severe environmental conditions. Precise manufacturing enables solid connections and low intermodulation (IMD) products.
IEC 339 & EIA RS-225
These quality connectors and additional supporting elements are the result of decades of experience. The whole range is designed to withstand severe environmental conditions. Precise manufacturing enables solid connections and low intermodulation (IMD) products.

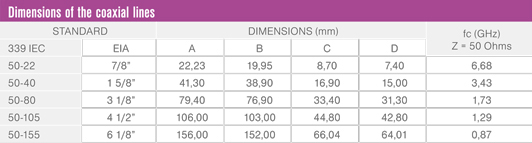

The EIA family of coaxial connectors are available in 7/8�, 1 5/8�, 3 1/8�, 4 1/2� and 6 1/8�, all of which are suitable for RF applications. They support cables with foam dielectric and air-dielectric cables.
Connectors are delivered with an added inner conductor, and most are �straight type� connectors.
Supporting elements such as couplings, gas barriers and gas inlet valves are also available for a complete installation solution.
These quality connectors and additional supporting elements are the result of decades of experience. The whole range is designed to withstand severe environmental conditions. Precise manufacturing enables solid connections and low intermodulation (IMD) products.
The EIA family of coaxial connectors are available in 7/8�, 1 5/8�, 3 1/8�, 4 1/2� and 6 1/8�, all of which are suitable for RF applications. They support cables with foam dielectric and air-dielectric cables.
Connectors are delivered with an added inner conductor, and most are �straight type� connectors.
Supporting elements such as couplings, gas barriers and gas inlet valves are also available for a complete installation solution.
